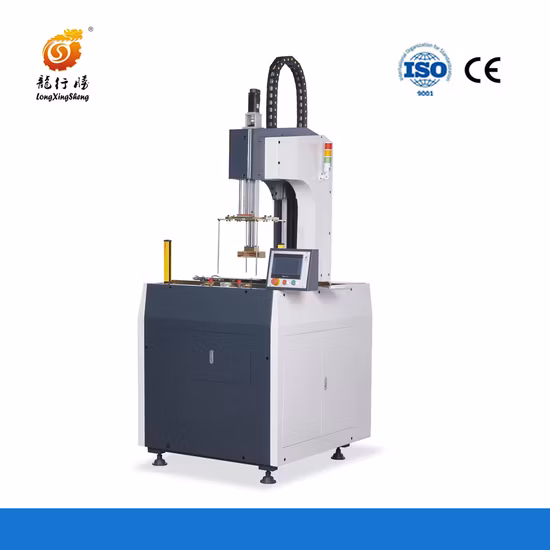

Ls-F7 Automatic Setting Wrapping Box Making Machine

Ls-F7 Automatic Setting Wrapping Box Making Machine

Overview Automatic Setting wrapping box making machine(LS-F7) Product Description Remark 1.Max and min case size depends
SHARE

Description

Basic Info
Model NO. LS-F7
Automatic Grade Semi-Automatic
Voltage 3.2kw/220V
Weight 1150kg
Dimension(L*W*H) 1200*1120*3100mm
Working Speed <20PCS/Min
Function Box Wrapping
Application-1 Rigid Boxes, Gift Box, Cases, Paper Packaging
Application-2 Boxes for Shoes, Phone, Shirts, Jewelry, Gifts
Transport Package with Paper, Film and by Wooden Pallet.
Specification Machine dimension: L1200*W1120*H3100mm
Trademark LXS
Origin Dongguan, China
HS Code 84413090
Production Capacity 30 Set/Sets Per Month
Product Description
Automatic Setting wrapping box making machine(LS-F7)

Product Description

Ls-F7 Automatic Setting Wrapping Box Making Machine

TypeLS-F7
Max box size L430*W350*H110mm
Min box size L80*W65mm*H10mm
Motor power 3.2kw/220v
Air supply 10L/min 0.6MPa
Working speed<20pcs/min
Weight of machine 1150kg
Machine dimension L1200*W1120*H3100mm
Remark
1.Max and min case size depends on the size and quality of paper2.The working speed decided by materials, glue, and the skill of the operator3.Compressor is not included in this machine

About LS-F7
LS-F7 Smart rigid box making machine is applied for wrapping the cover paper on the pasted box. When we get a new box, installed the box mold on machine, input its data on the LS-F7 touch screen. Including the box length, width, height, cover paper width, top mold height, middle mold height and tucking in blade thickness. Then press caluate, machine will automaitc come to home position and move to setting position. Load a box to checking the setting and ensure each setting is fine. Then machine can start working. Whole process will cost 8 minutes. This machine will finished the side wrapping, edge folding (edge folding length ≤100mm), tucking in and air pressing at one time. No need to change air pressing board, tucking in blade. Air pressing structure has been divide into two floor, so that whole machine will cost around 3 s for finished one box. It is an ideal equipment for changable small orders.

Ls-F7 Automatic Setting Wrapping Box Making Machine

Ls-F7 Automatic Setting Wrapping Box Making Machine

Ls-F7 Automatic Setting Wrapping Box Making Machine

Ls-F7 Automatic Setting Wrapping Box Making Machine

Our Advantages


Certificates: ISO9001-2008, Quality management system, CE certificate.Mission & Vision: Provide smart modular for packaging. Products scope: Automatic rigid box making machine. V grooving machine. Visual positioning machine. Rigid box former. Corner pasting machine. Gluing machine and other machinery.Market positioning: Middle and high-end marketSpace of Dongguan Fty:10598m2Major market: America, Europe, Asia, Mid-east.
FAQ

Q: How could I pay?A1: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.Q2: What is your packing way? Can I have the customized package?A2: We have the standard export package. For more details about the customized package, please contact us.
Q3: What is the delivery lead time?A3: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.Q4: Are you a factory or a trading company?A4: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.Q5: Where is your main market?A5: We export to the North America, Southeast Asia, Europe, Korea, Japan, and other countries.
